Description

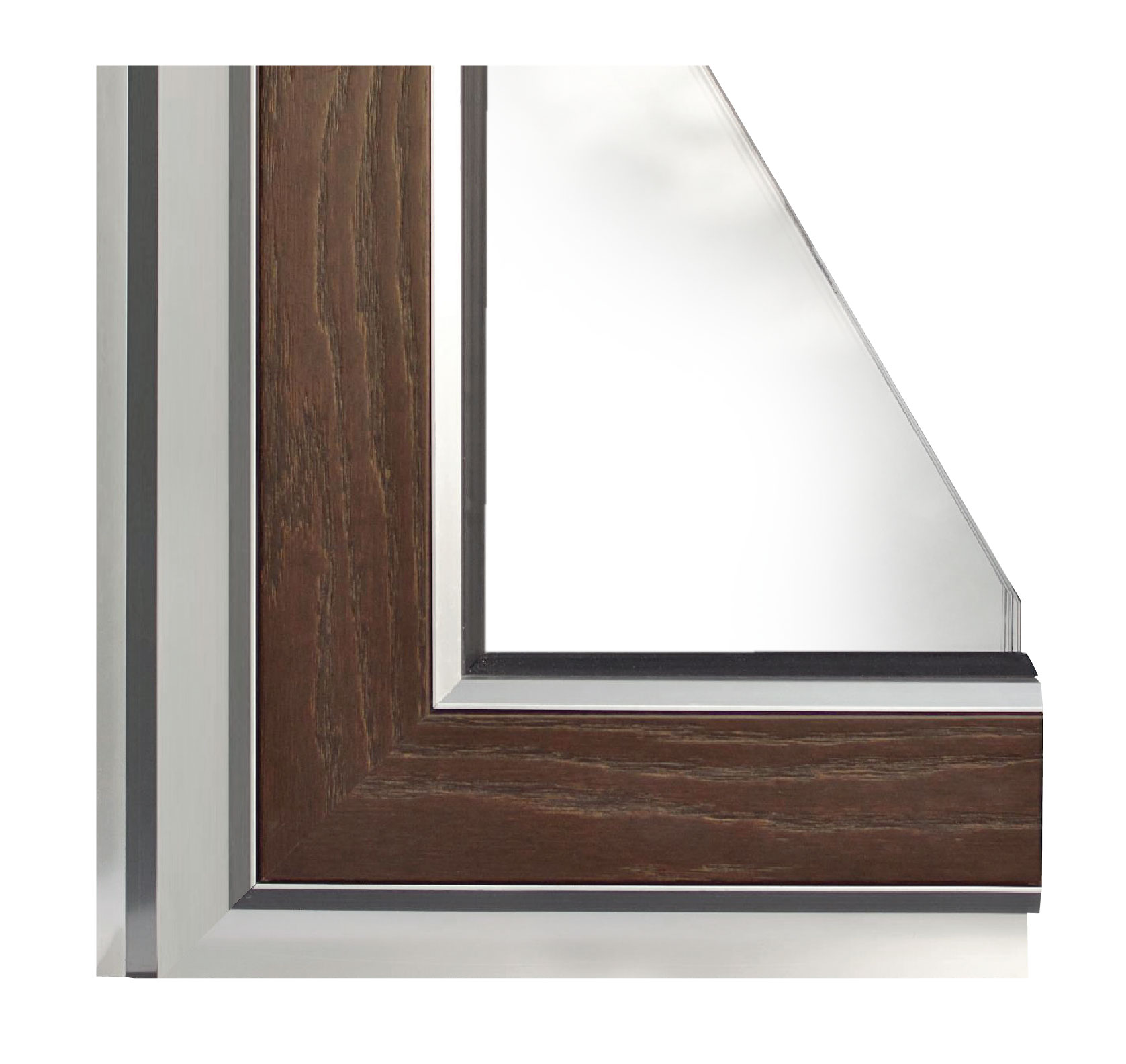

The new series SW80TT, thermal break, is the result of continuous research and development. It is characterized by:
- Excellent thermal and acoustic insulation
- Availability of various wooden frames
- Ideal for low energy consumption buildings
| Technical Characteristics | |
| Application of the glass with clamp on polyamide glazing beads | |

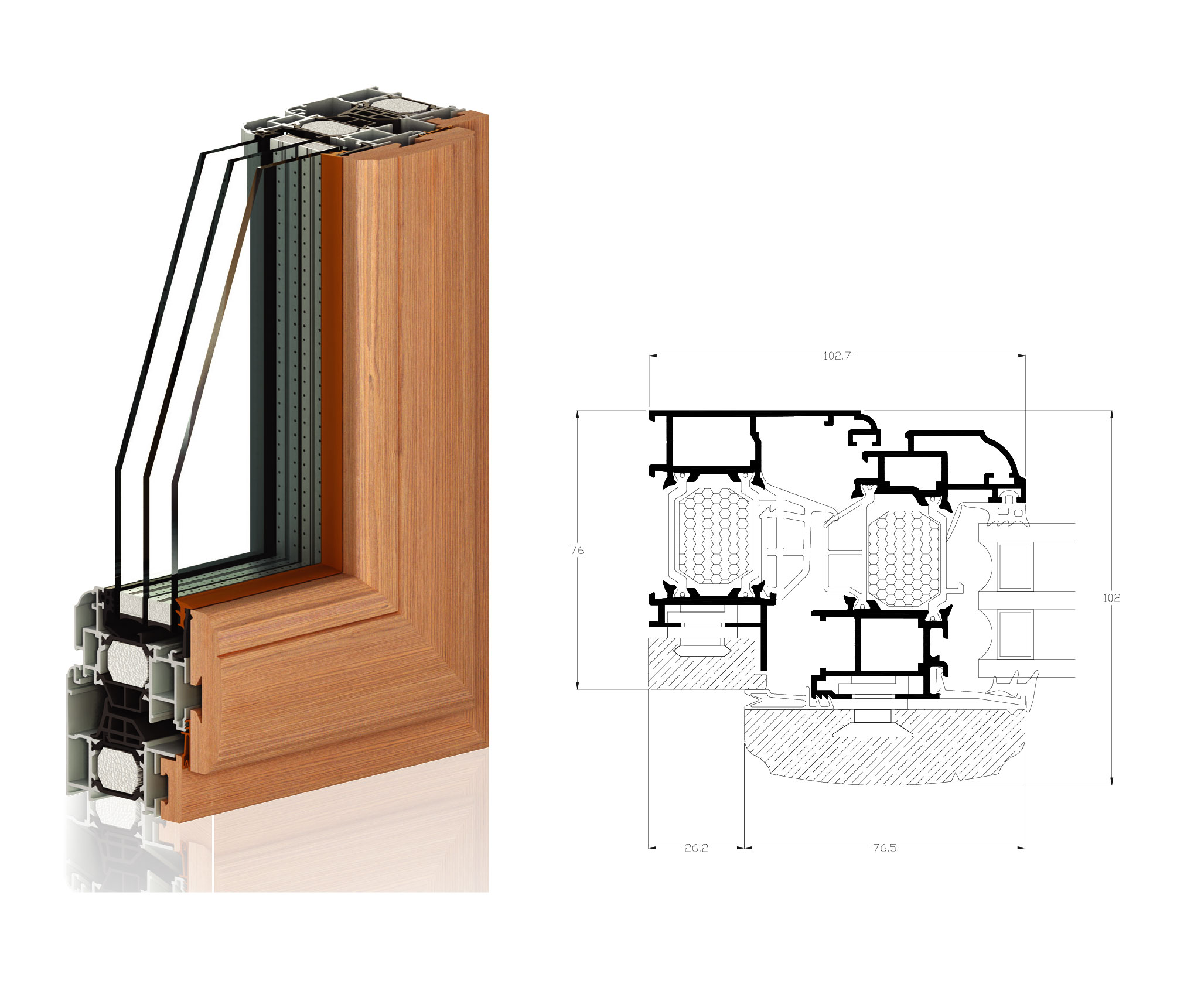

| Fixed Frame depth | 76mm |
| Wing Depth (mobile frame) | 93mm |
| Space for glass or panels | From 29mm to 47mm |
| Wood finishings | oak, cherry, maple and tulipwood |
| U Value*
One-Wing Window |
Uw 1.3 W/m2K > Ug 1.1 |
| Uw 1.1 W/m2K > Ug 0.9
Uw 0.9 W/m2K > Ug 0.6 |
|
| Two-Wing Window | Uw 1.4 W/m2K > Ug 1.1
Uw 1.3 W/m2K > Ug 0.9 Uw 1.1 W/m2K > Ug 0.6 |
| Acoustic Insulation** | |
| Acoustic Insulation Rw | from 32 to 38 dB |
| Test Results*** | |
| Air permeability (UNI EN 12207) | Class 4 |
| Water permeability (UNI EN 1028) | Class E1050 |
| Wind Resistance (UNI EN 12210) | Class C5 |
| U Value of node (UNI EN 125767-1) | Uf 1.41 W/m2K |
