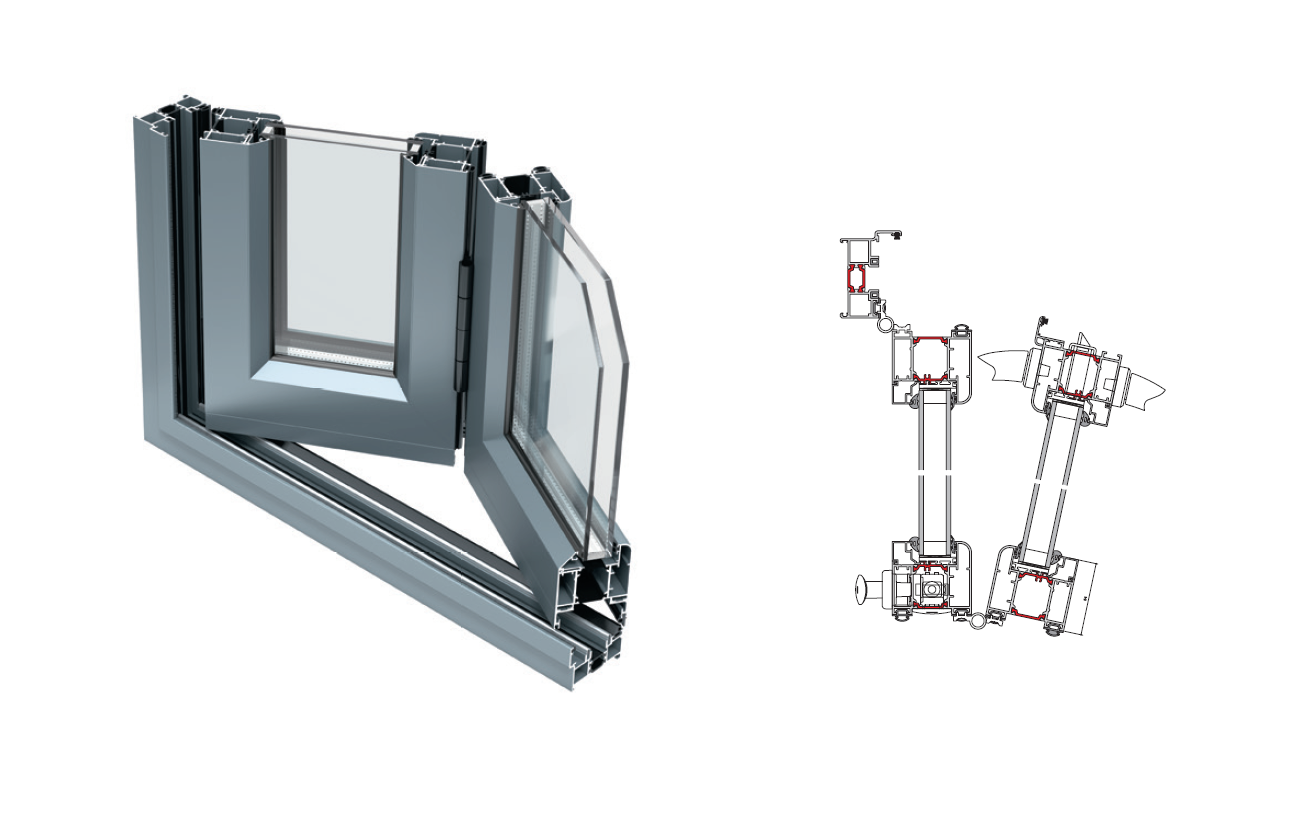

Profiles for folding doors with thermal break:
- depth of outer frames: 70 mm
- depth of sash: 70 mm
Description
Profiles for folding doors with thermal break:
- depth of outer frames: 70mm
- depth of sash: 70mm
Panes:
- minimum depth: 28mm
- maximum depth: 44mm
- panel, double glass, triple glass
Type of seal:
- Double stop
Special Feature
- Anti-theft
Configurations:
Folding door system for balcony-doors. 2 doors, 3 and 4 doors, open I or open out options. Square or softline frame profiles. Corner bi-fold. Panels can be stacked inside or outside, to the left or right, or split stacked on both sided. Low threshold option.
| THERMAL TRANSMITTANCE* | ACOUSTIC PERFORMANCE | AIR | WATER PERMEABILITY | WIND | ||
| BSF70 | Uf = 2.7 – 3.4 W/m2K* | Ucw = 1.6 W/m2K
with Ug = 0.7 W/m2K
|
Rw (Ct; Ctr) = 36 (-1; -3) dB | 4 | 9A | AE2400 |
**UNI EN ISO 10077-2
