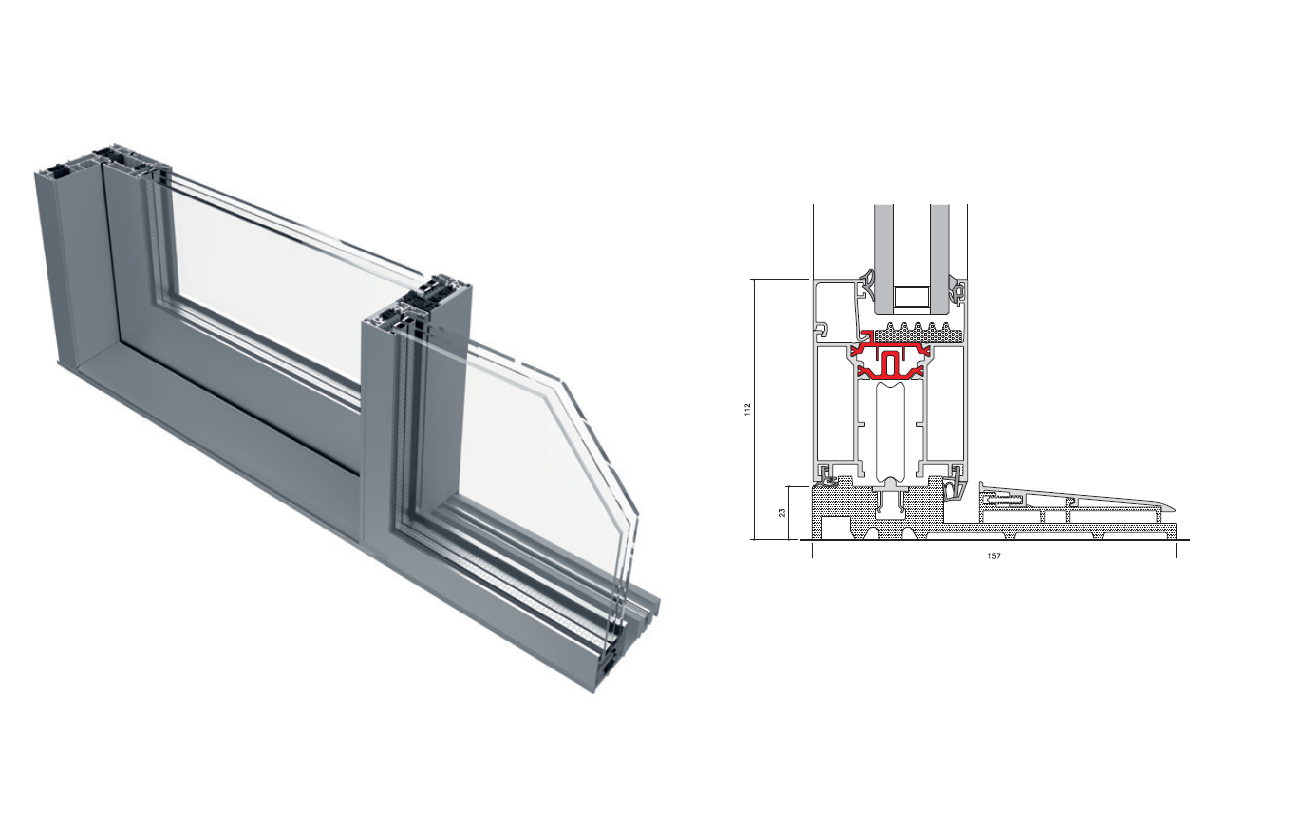

Profiles for thermal break sliding doors:
- depth of outer frames: 156
- depth of sash: 66.5
Description
- Profiles for thermal break sliding doors:
- depth of outer frames: 156mm
- depth of sash: 66.5mm
Panes:
- minimum depth: 24mm
- maximum depth: 50mm
- panel, double glass, triple glass
Rollers:
- 300 or 400 kg
Type of seal:
- Gaskets
Configurations:
Lift & slide doors. Single rail +_fix. 2 sashes, 3 sashes, 4 sashes. Full glass corner solution. Low threshold option. Full access.
| THERMAL TRANSMITTANCE* | ACOUSTIC PERFORMANCE | AIR | WATER PERMEABILITY | WIND | ||
| SC156TT | Uf = 1.6 – 6.5 W/m2K*
IRcCOS 1994-CPR-RP1267 |
Uw = 0.9 W/m2K
Ug = 0.6 W/m2K Lift and slide 2 door 4000 x 2500 mm |
Rw (Ct; Ctr) =
43 (-2; -5) dB |
4 | E1500 | C4 |
**UNI EN ISO 10077-2
