Description

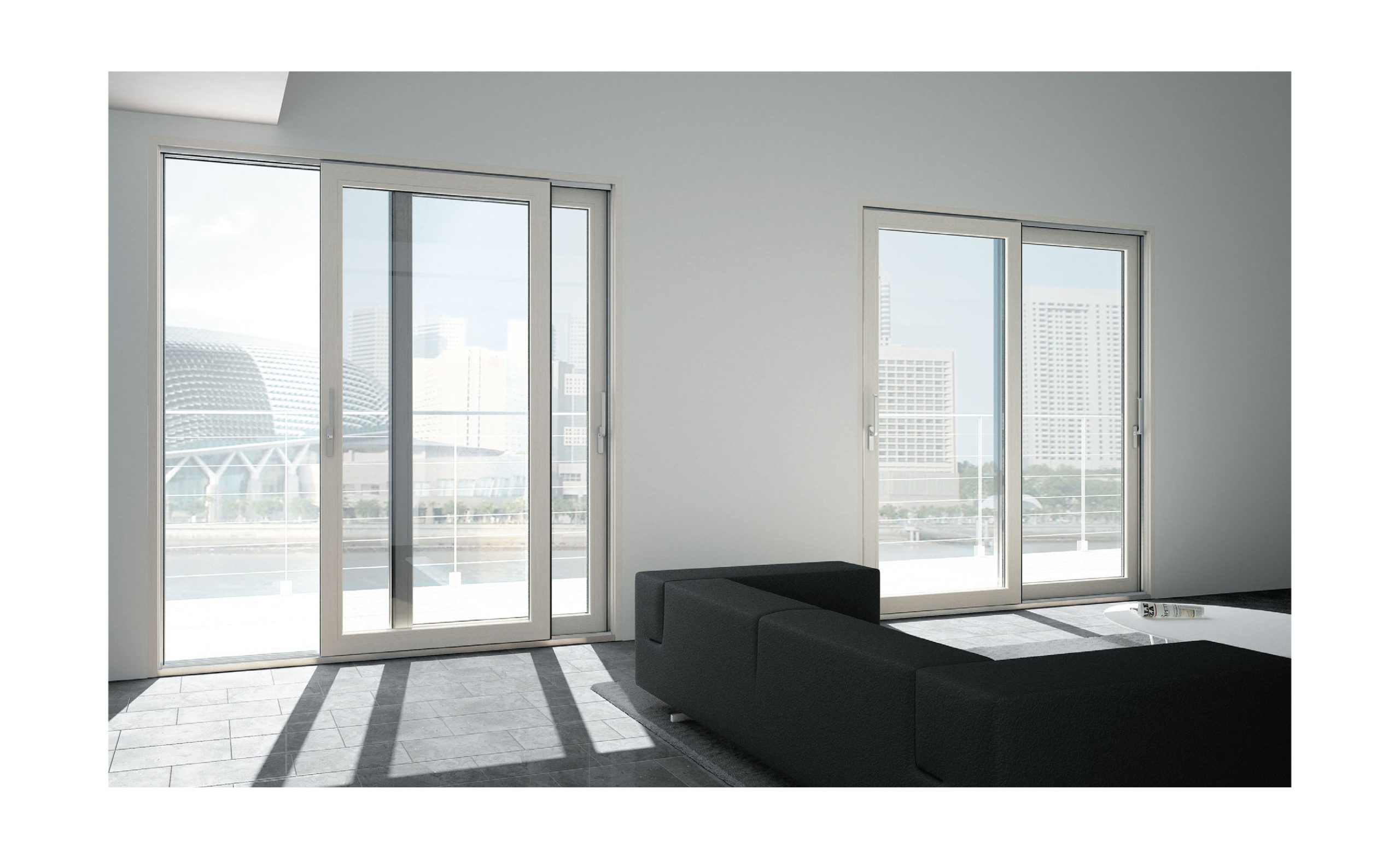

The SW180s, with a capacity per wing of up to 300 kg, offers the following characteristics:
- Ideal for large surfaces
- Wide selection of opening types
- Easy to use opening mechanism
- Also available in a recessed version
| Technical Characteristics | |
| Application of the glass with snap in aluminium/wood glazing bead | |
| Fixed Frame depth | 173.6mm |
| Wing Depth (mobile frame) | 68mm |
| Space for glass or panels | From 21mm to 27mm |
| Wood finishings | oak, cherry, maple and tulipwood |
| U Value* | |
| Sliding with two wing | Uw 2.0 W/m2K |
| Test Results*** | |
| U Value of node (UNI EN 10077-2) | Uf 4.26 W/m2K |
