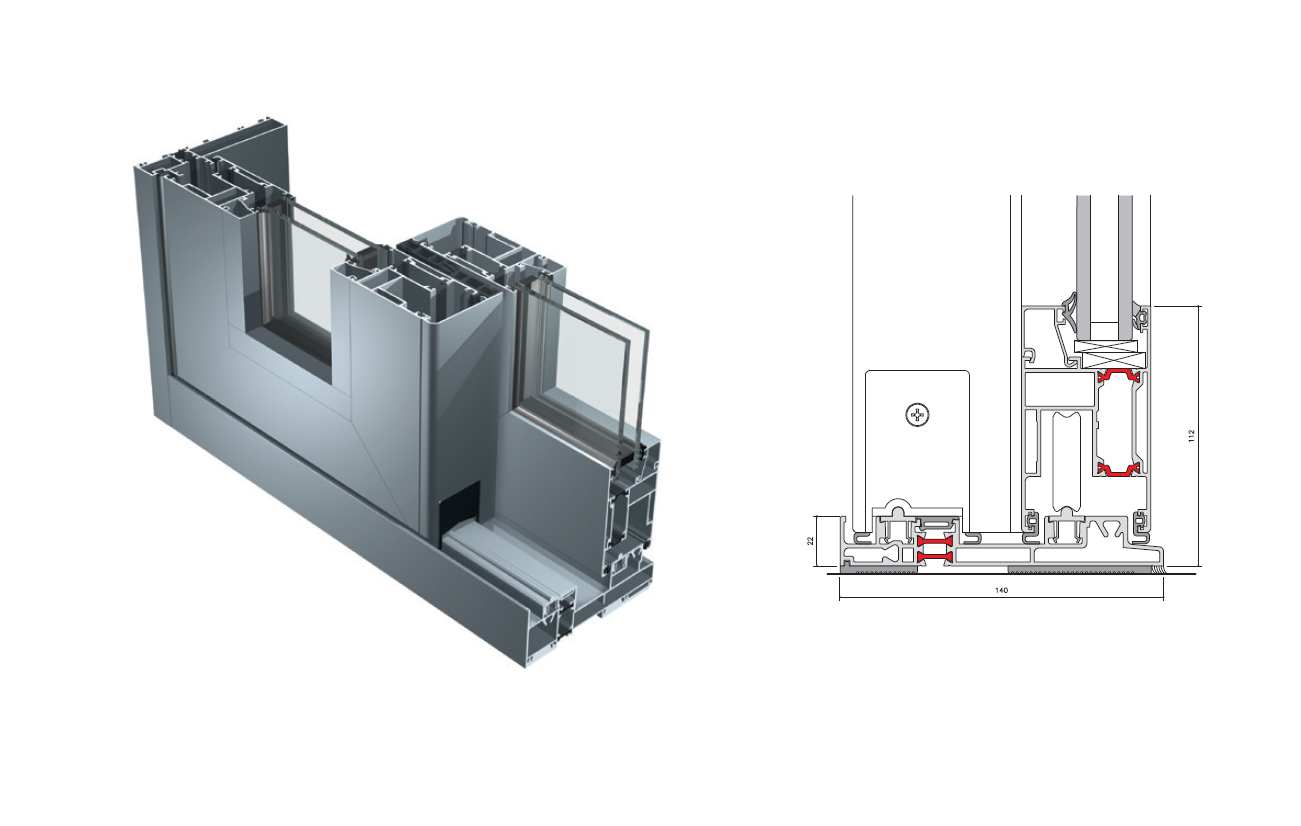

Profiles for thermal break sliding doors:
- depth of outer frames: 156
- depth of sash: 66.5
Description
- Profiles for thermal break sliding doors:
- depth of outer frames: 156mm
- depth of sash: 66.5mm
Panes:
- minimum depth: 24mm
- maximum depth: 50mm
- panel, double glass, triple glass
Rollers:
- 300 or 400 kg
Type of seal:
- Gaskets
Configurations:
Lift & slide doors. Single rail +_fix. 2 sashes, 3 sashes, 4 sashes. Full glass corner solution. Low threshold option. Full access.
| THERMAL TRANSMITTANCE* | ACOUSTIC PERFORMANCE | AIR | WATER PERMEABILITY | WIND | ||
| SC140TT | Uf= 3.1 – 5.4 W/m2K
ITC 4757/ RP/ 08 |
Uw = 1.4 W/m2K
Ug = 0.5 W/m2K Lift and slide 2 door 2500 x 1280 mm |
Rw (Ct; Ctr) =
38 (-1; -3) dB |
4 | 8A | A4 |
**UNI EN ISO 10077-2
