Description
Its main characteristics:
- A wide range of types available (pivoting, external opening, etc.)
- Design in line with current market trends
- Possibility of installing shades inside the glass
- Snap-in glazing bead system with the possibility of mounting the glass on-site.
| Technical Characteristics | |
| Application of the glass with snap-in aluminium/wood glazing bead | |

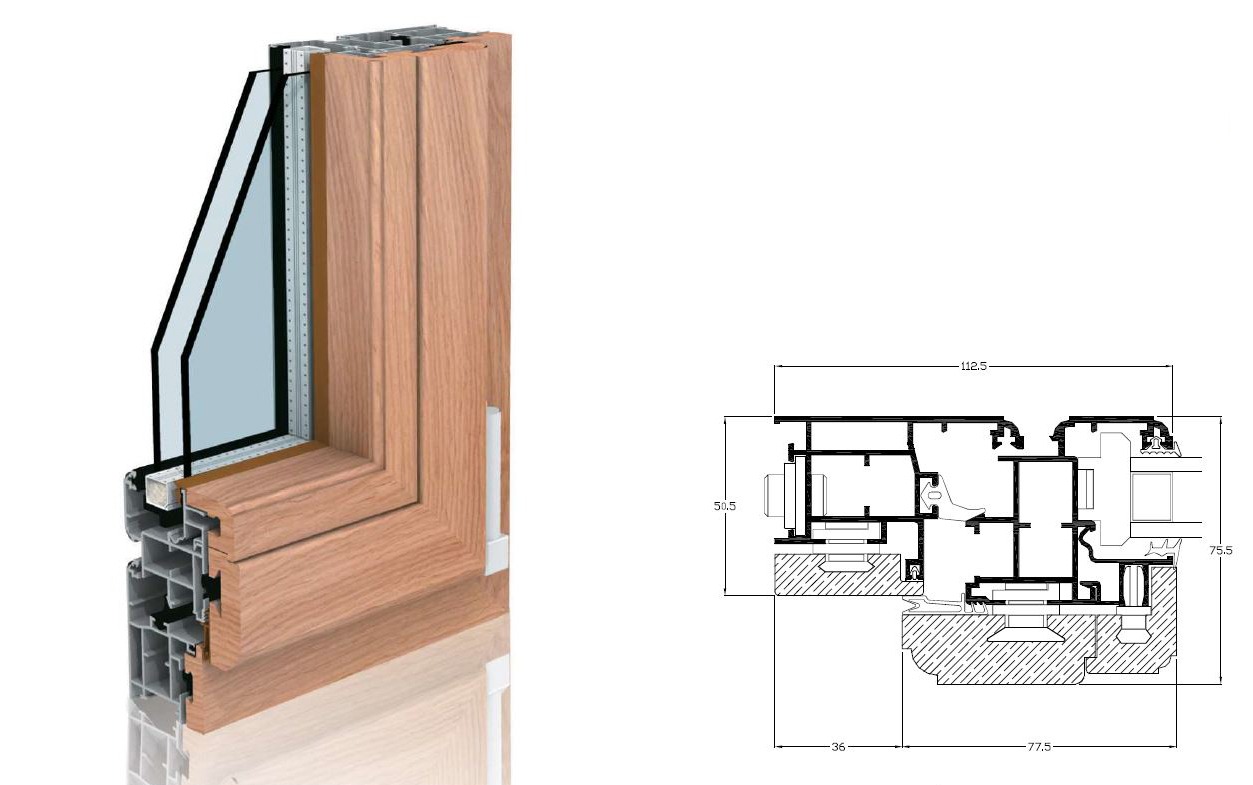

| Fixed Frame depth | 50.5mm |
| Wing Depth (mobile frame) | 75.5mm |
| Space for glass or panels | From 23mm to 29mm |
| Wood finishings | oak, cherry, maple and tulipwood |
| U Value* | |
| One-Wing Window | Uw 2.0 W/m2K |
| Two-Wing Window | Uw 2.4 W/m2K |
| Acoustic Insulation** | |
| Acoustic Insulation Rw | from 32 to 38 dB |
| Test Results*** | |
| Air permeability (UNI EN 1026) | Class 4 |
| Water permeability (UNI EN 1027) | Class 9A |
| Wind Resistance (UNI EN 12211) | Class C5 |
| U Value of node (UNI EN 10077-2) | Uf 3.89 W/m2K |
