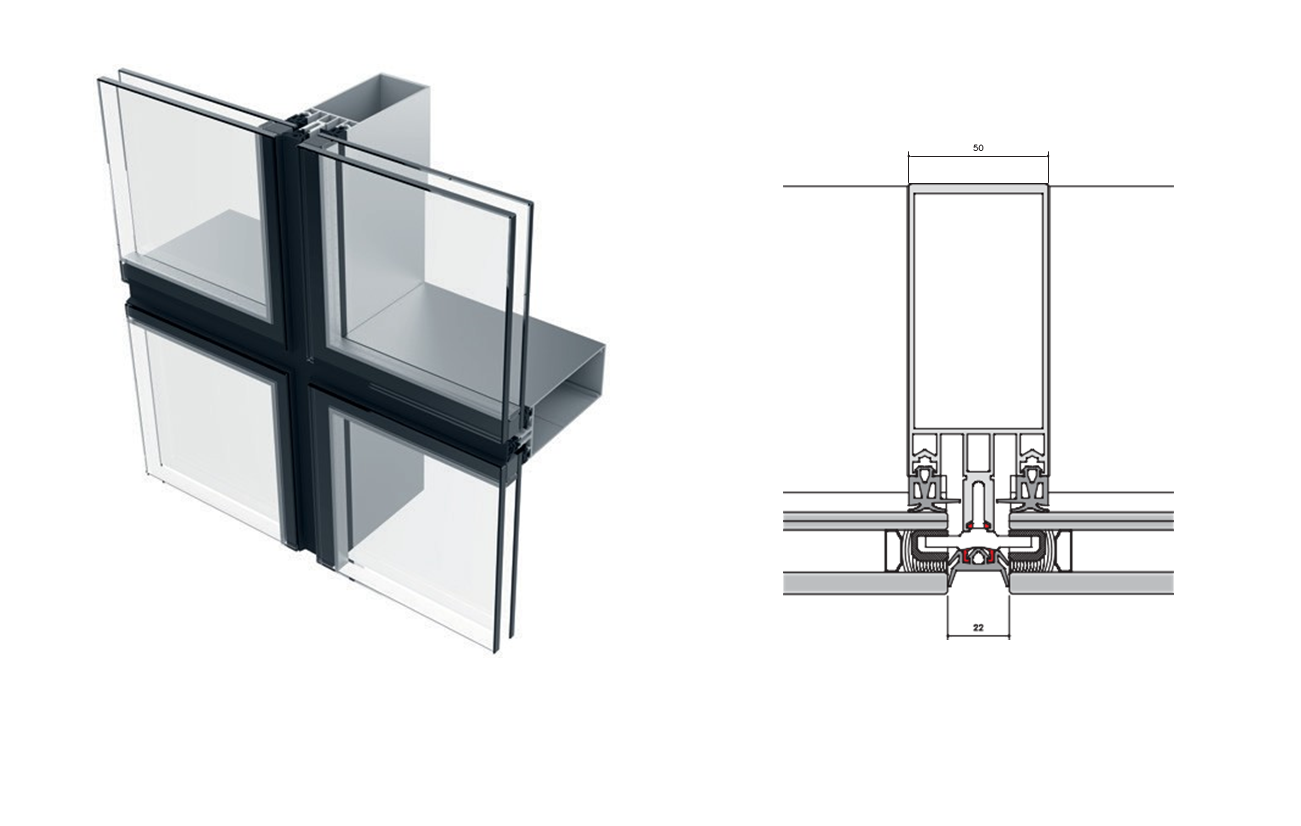

Profiles for curtain walls and covers:
width of the mullion: 50 mm
depth of the mullion min/max: 55/330 mm
depth of the transom min/max: 35/245 mm
Description
Profiles for curtain walls and covers:
width of the mullion: 50 mm
depth of the mullion min/max: 55/330 mm
depth of the transom min/max: 35/245 mm
Panes:
minimum depth: 6 mm
maximum depth: 35mm
panel, single glass, double glass
Transoms:
690 kg
Type of seal:
double stop, triple stop
Configurations:
Mullions and transoms with mechanical retaining from the inner pane glazing, structural glazing, polygonal facade, vertical curtain walls.
| THERMAL TRANSMITTANCE* | ACOUSTIC PERFORMANCE | AIR | WATER PERMEABILITY | WIND | ||
| SG50 | UNI EN 13947* | Ucw = 1.7 W/m2K** | Rw (Ct; Ctr) = 44
(-1; -3) dB |
A4/4 | RE1500 | 1700 pos.
1500 neg. |
*calculation of the UTJ value depends on the choice of the glass
**module 1200 x 1800 mm with Ug = 1.1 W/m2K
