- Features glass – 6mm to 24mm
- System performance
- Sliding 105mm has been tested at Al-Futtaim Exova
- Air infiltration – ASTM E283-04
- Water penetration – ASTM E331-00 (static)
- Wind resistance – ASTM E330-02 (serviceability)
- Wind resistance – ASTM E330-02 (safety)
- Performance grade – ANSI/AAMA/NWWDA (101/I.S.2.97)
Full solution package is supported to fulfill the requirements to cover. According to the American National Standard It is designed for heavy duty use. The results have been impressive. All profiles are available in all colours in order to meet today’s modern architectural requirements.
-
-
Description
-
-
-
- Features glass – 6mm to 24mm
- System performance
- Sliding 105mm has been tested at Al-Futtaim Exova
- Air infiltration – ASTM E283-04
- Water penetration – ASTM E331-00 (static)
- Wind resistance – ASTM E330-02 (serviceability)
- Wind resistance – ASTM E330-02 (safety)
- Performance grade – ANSI/AAMA/NWWDA (101/I.S.2.97)
Full solution package is supported to fulfill the requirements to cover. According to the American National Standard It is designed for heavy duty use. The results have been impressive. All profiles are available in all colours in order to meet today’s modern architectural requirements.

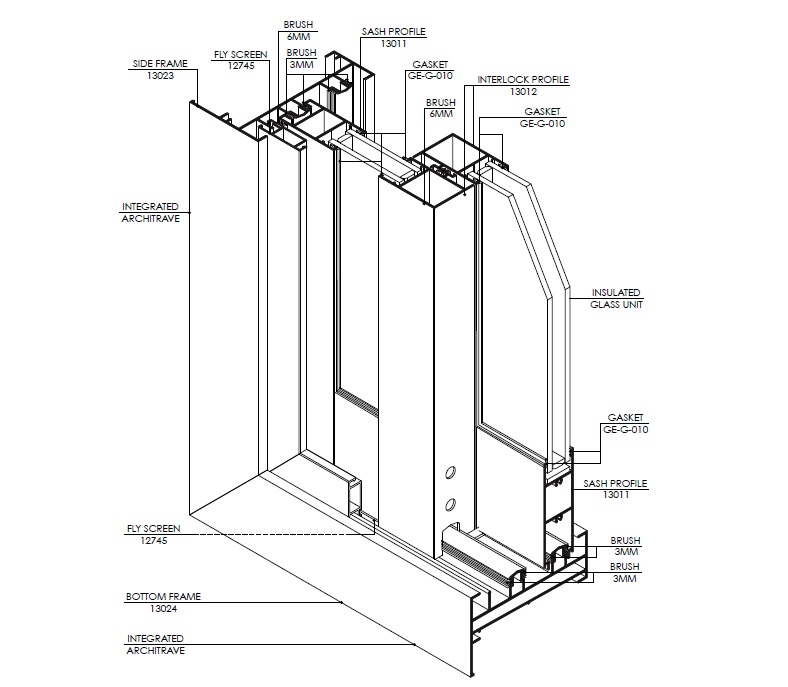

Frame
Tubular with a width of 105m, a wide range of frames are available to suit most of the required applications in the building codes. A 125mm frame is available to widen the use of the system. Fly screen rail is embedded in the frames. It is mad for internal and external usage depending on the project requirements.
Sash
28.6mm to 35mm Tubular straight, elegant and stylish. A wide range is available to cover all the needed applications and glass thickness.
Assembly
Assembly of the frames is done by 45° cut whereas the sashes are custom 900 cut.
-
-
