Description
This series, one of the latest developments, meets the following needs:
- Excellent thermal insulation
- Design in line with current market trends
- Suitable for all climates
- Also available with exclusive custom system for inlaid wing

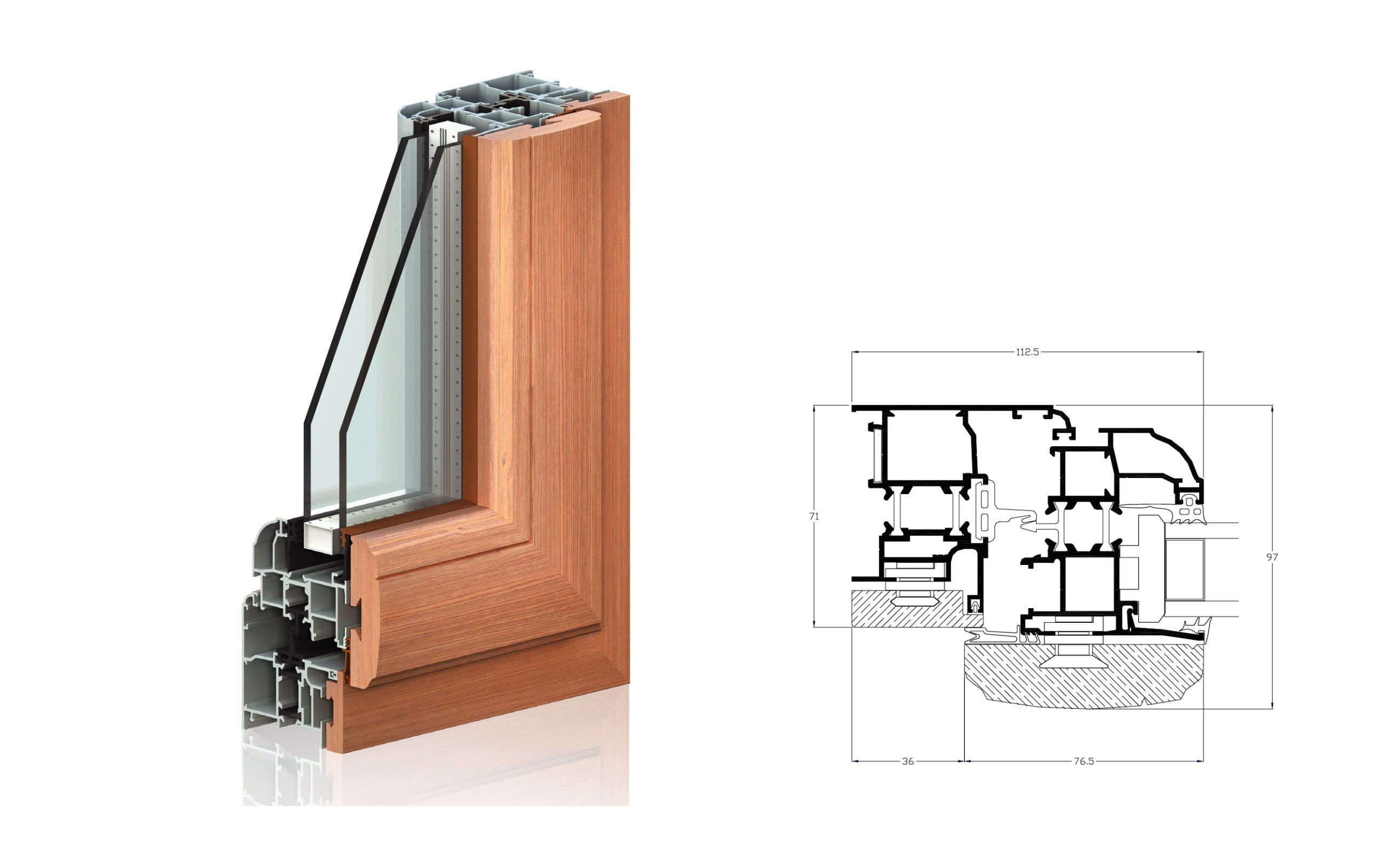

| Technical Characteristics | |
| Application of the glass with clamp-on polyamide glazing beads | |
| Fixed Frame depth | 71mm |
| Wing Depth (mobile frame) | 90mm |
| Space for glass or panels | From 29mm to 35mm |
| Wood finishings | oak,ash,cherry,maple and tulipwood |
| U Value* | |
| One-Wing Window | Uw 1.1 W/m2K |
| Two-Wing Window | Uw 1.3 W/m2K |
| Acoustic Insulation** | |
| Acoustic Insulation Rw | from 32 to 38 dB |
| Test Results*** | |
| Air permeability (UNI EN 1026) | Class 4 |
| Water permeability (UNI EN 1027) | Class E1200 |
| Wind Resistance (UNI EN 12211) | Class C5 |
| U Value of node (UNI EN 125767-1) | Uf 1.78 W/m2K |
