Description
The sliding SW75s, with a capacity per wing of up to 80 kg
- Is ideal for small panes
- Can be used in numerous combinations with the SW40 and SW50 systems for the most varied needs
- Has a wide range of types of openings (two and three rail frames)

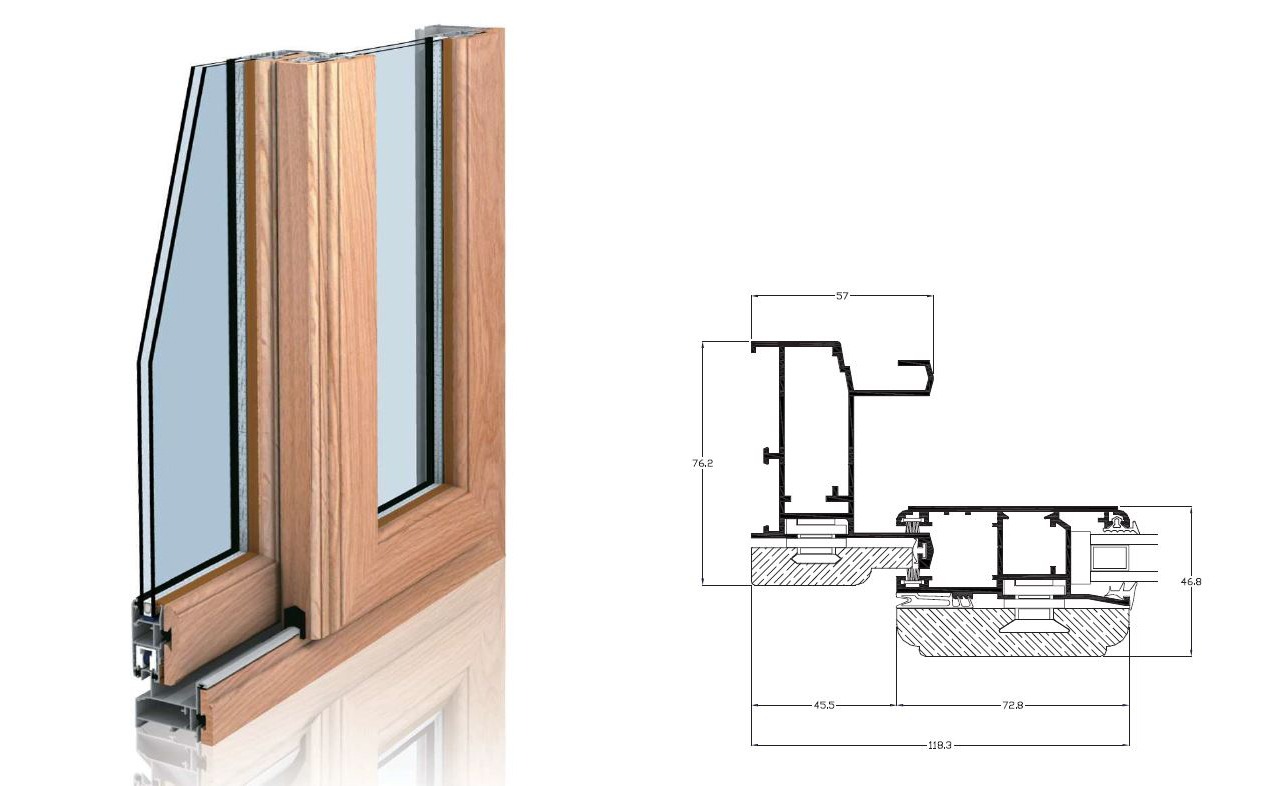

| Technical Characteristics | |
| Application of the glass glazed on aluminium swing sash | |
| Fixed Frame depth | 76.2mm |
| Wing Depth (mobile frame) | 46.8mm |
| Space for glass or panels | 17mm |
| Wood finishings | oak, cherry, maple and tulipwood |
| U Value* | |
| Sliding with two wing | Uw 2.7 W/m2K |
| Test Results*** | |
| U Value of node (UNI EN 10077-2) | Uf 4.43 W/m2K |
