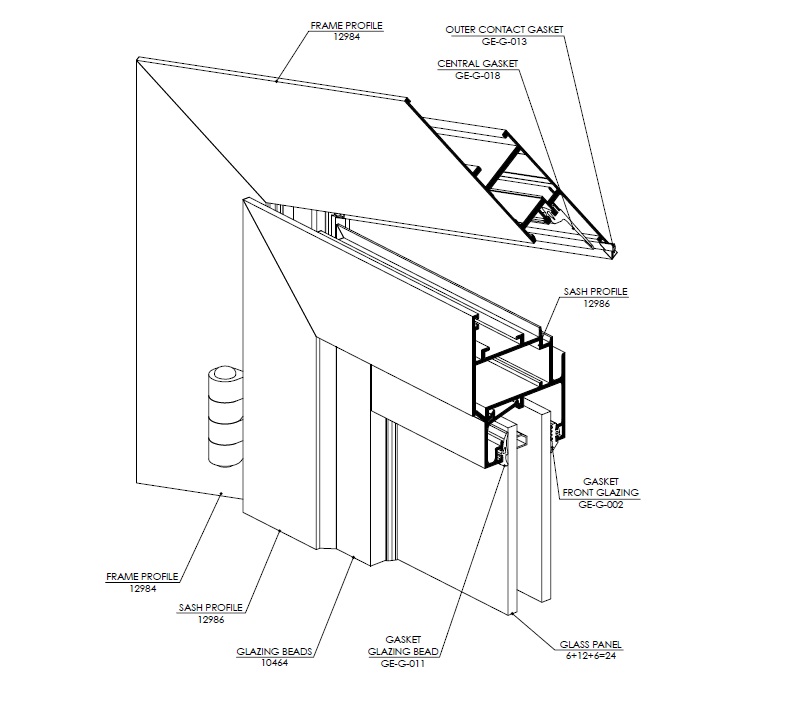

Hinged 45mm

• Features glass – 4mm to 28mm
• Sliding 45mm has been tested at Al-Futtaim Exova
  • Air infiltration – ASTM E283-04
  • Water penetration – ASTM E331-00 (static)
  • Wind resistance – ASTM E330-02 (serviceability)
  • Wind resistance – ASTM E330-02 (safety)
• Frame: 45mm & 150mm
• The system can be inward and outward opening
• The system can be used for door and window
• The system covers Arch shape, Louvers, Pivot window & swing door
• Assembly of the Frame & Sash cut 45⁰

It is designed for heavy duty use according to the American national standard. The results have been impressive. All profiles are available in all colours in order to meet today’s modern architectural requirements.
