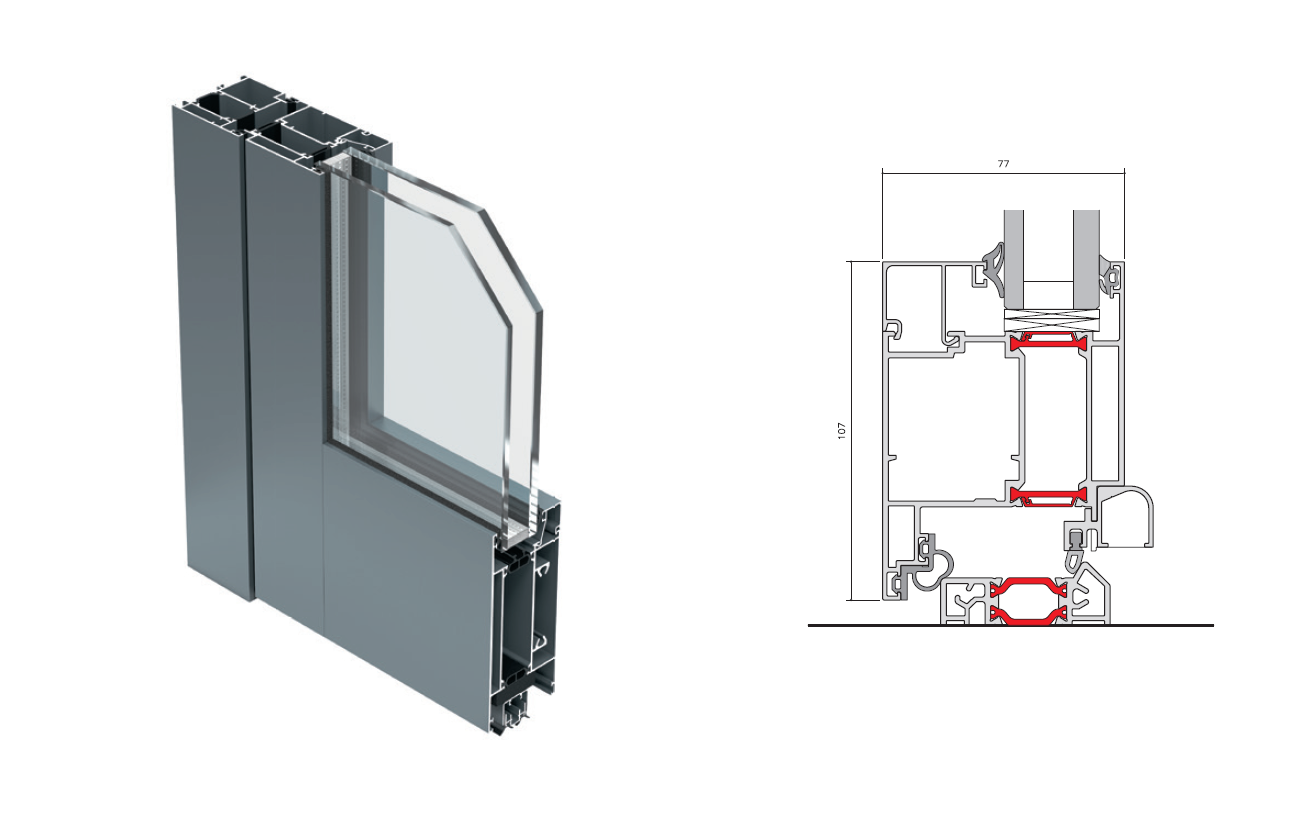

Profiles for thermal break door:
- depth of outer frame: 66.5 mm
- depth of the door sash: 66.5 / 76.5 mm
Description
Profiles for thermal break door:
- depth of outer frame: 66.5mm
- depth of the door sash: 66.5 / 76.5mm
Panes:
- minimum depth: 22mm
- maximum depth: 50 / 60mm
- panel, double glass, triple glass
Hinges:
- 160 kg
Type of seal:
- double stop, triple stop
Configurations:
Hinged door, heavy duty, inward and outward opening, swing doors.
| THERMAL TRANSMITTANCE* | ACOUSTIC PERFORMANCE | AIR | WATER PERMEABILITY | WIND | ||
| 67ID | Uf = 2.7 – 3.0 W/m2K IRcCOS 0130/RP/10 | Ud = 1.2 W/m2K
Ug = 0.5 W/m2K |
/ | 3 | 2B | C5 |
*1 door 1530mm x 1480mm – glass spacer “warm edge” 0.05 W/Mk
**UNI EN ISO 10077-2
