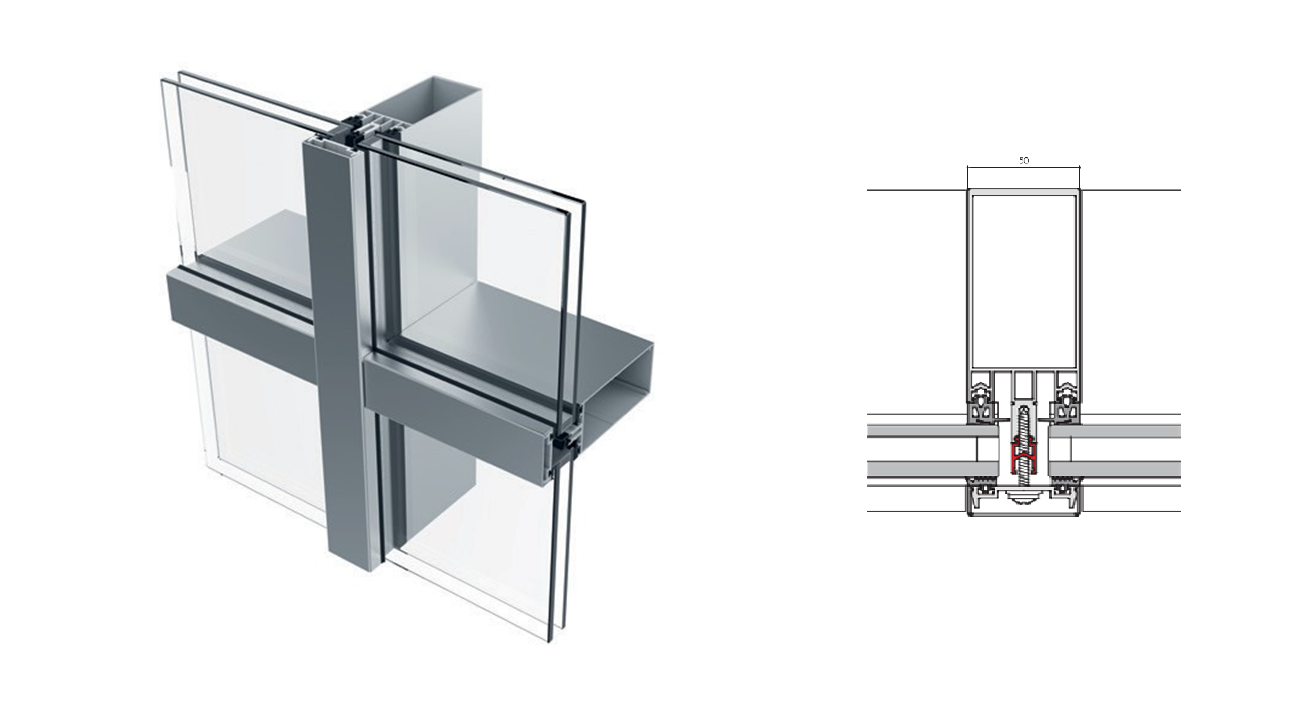

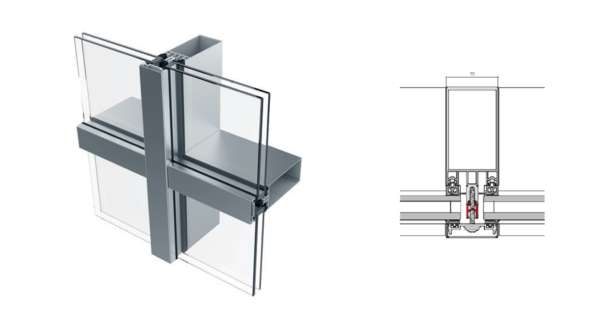

Profiles for curtain walls and covers:
- width of the mullion: 50 mm
- depth of the mullion min/max: 55/330 mm
- depth of the transom min/max: 35/245 mm
Description
SL50/HI/FP
Profiles for curtain walls and covers:
- width of the mullion: 50 mm
- depth of the mullion min/max: 55/330 mm
- depth of the transom min/max: 35/245 mm
Panes:
- minimum depth: 6 mm
- maximum depth: 40 mm
- panel, single glass, double glass, triple glass
Transoms:
- 690 kg
Type of seal:
- double stop, triple stop
Configurations:
Mullions and transoms with mechanical retaining, polygonal facade, vertical curtain walls, skylight, wintergarden.
| THERMAL TRANSMITTANCE* | ACOUSTIC PERFORMANCE | AIR | WATER PERMEABILITY | WIND | ||
| SL50/HI | Uf = 1.1 – 1.4 W/m2K | Ucw = 1.1 W/m2K* | Rw (Ct; Ctr) = 46
(-1; -4) dB |
A4/4 | RE1500 | 2000 Pa |
*module 1200 x 1800 mm with Ug = 0.6 W/m2K
**module 1200 x 1800 mm with Ug = 1.1 W/m2K
