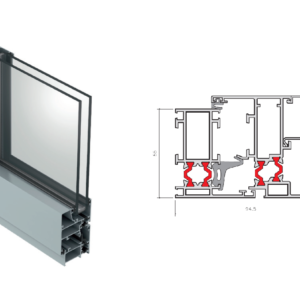

Profiles for thermal break windows & doors:
- depth of outer frames: 55 mm
- depth of the door sash: 55 mm
- depth of sash: 63 mm
Description

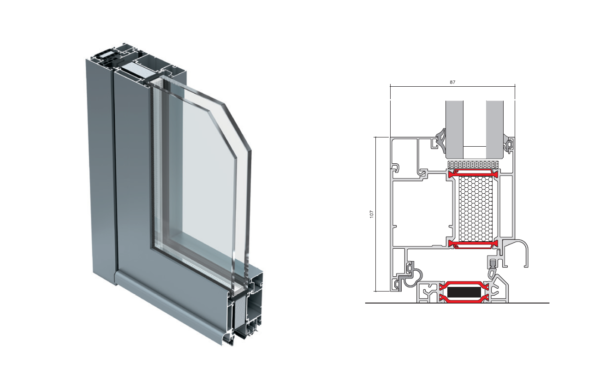

Profiles for thermal break door:
- depth of outer frame: 77mm
- depth of the door sash: 76.5 / 86.5mm
Panes:
- minimum depth: 20mm
- maximum depth: 60 / 70mm
- panel, double glass, triple glass
Hinges:
- 160 kg
Type of seal:
- double stop, triple stop
Configurations:
Hinged door, heavy duty, inward and outward opening.
| THERMAL TRANSMITTANCE* | ACOUSTIC PERFORMANCE | AIR | WATER PERMEABILITY | WIND | ||
| 77ID | Uf = 1.3 – 1.8 W/m2K | Ud = 1.0 W/m²K
Ug = 0.5 W/m²K |
/ | 3 | 2B | C4 |
*1 door 1530mm x 1480mm – glass spacer “warm edge” 0.05 W/Mk
**UNI EN ISO 10077-2
